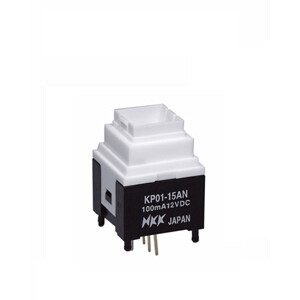

KP0115ACAKG036CF
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MINIATURE PUSHBUTTON ILLUMINATED/PC
PDF
/
Inventory: 5555
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Center Contact Plating GOLD
Center Contact Material STAINLESS STEEL
Terminal Material BRASS
End Contact Material COPPER ALLOY
End Contact Plating GOLD
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2012
Series KP
Feature Tactile Feedback
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 12V
Current Rating (Amps) 100mA DC
Current Rating 100mA
Termination Style PC Pin
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.2mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2.0 3.1VDC
Illumination Type, Color LED, Red/Green
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 5,000,000 Cycles
Throw Configuration SPST
Mechanical Life 5,000,000 Cycles
Illumination Type LED
Contact (DC) Max Rating R Load 0.1A@12VDC
PCB Hole Count 9
Contact Function OFF-(ON)
Actuator Travel 4.4958 mm
Dimensions
Body Height 11.5062mm
Length - Termination 0.142 inch
Compliance
RoHS Status RoHS Compliant
