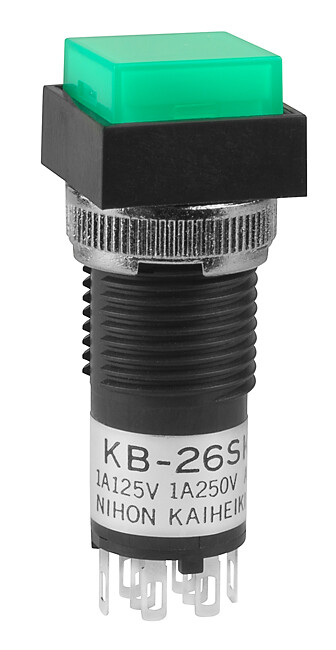

KB26SKW01-12-FB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches DPDT ON-ON RND GRN
PDF
/
Inventory: 7216
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.138 inch
Length - Termination 0.197 inch
Body Height 38.5064mm
Technical
Body Color BLACK
Bushing Length 0.559 inch
Solderability WAVE
Actuator Travel 2.9972 mm
Contact (AC) Max Rating R Load 1A@250VAC
Contact Current(AC)-Max 1A
Illumination Color Green
Contact Current Rating 1A
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Contact Voltage(DC)-Max 30V
Sealing MOLDED
Illumination Type, Color Incandescent, Green
Illumination Voltage (Nominal) 12VAC
Contact Current(DC)-Max 1A
Color - Actuator/Cap Green (White Filter/Diffuser)
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Square, Button
Body Length or Diameter 11.9888mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Additional Feature 12V LAMP
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series KB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Terminal Material BRASS
Actuator Material POLYCARBONATE
Housing Material Polyamide
Surface Mount NO
Mounting Type Panel Mount, Front
Contact Plating Silver
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
