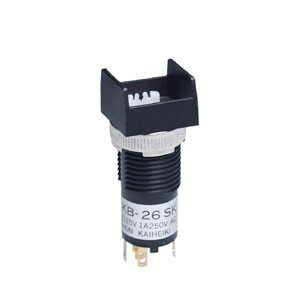

KB26SKG01B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MINIATURE PUSHBUTTON PANEL MOUNT
PDF
/
Inventory: 4572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYAMIDE
Housing Material POLYAMIDE
Terminal Material BRASS
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series KB
Feature With Barrier
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 750VAC V
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
Contact Timing BREAK-BEFORE-MAKE
Actuator Travel 2.9972 mm
Solderability HAND
Bushing Length 0.559 inch
Body Color BLACK
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Diameter 0.472 inch
Dimensions
Body Height 11.4808mm
Length - Termination 0.158 inch
Actuator Length 0.346 inch
Compliance
RoHS Status ROHS3 Compliant
