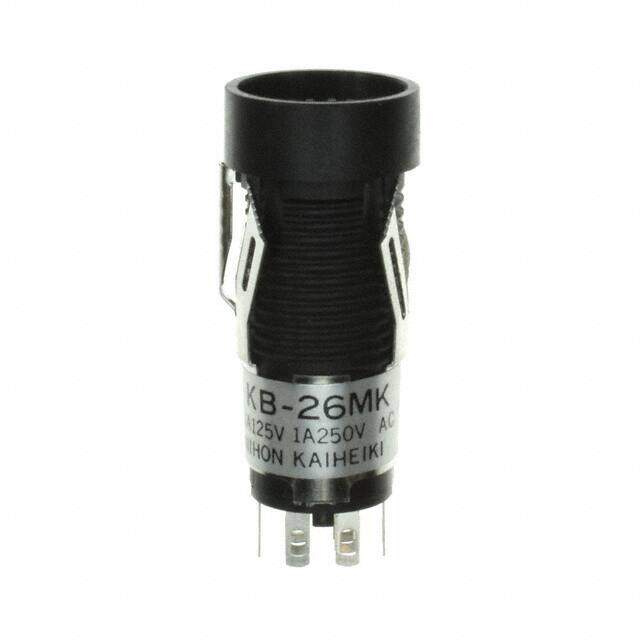

KB26MKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $9.42
Unit Price: USD $9.4248
≥1 USD $9.4248
≥10 USD $8.48848
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material BRASS
Technical
Operating Temperature -25°C~70°C
Packaging Tray
Published 2002
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@250VAC
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(AC)-Max 250V
Actuator Travel 2.9972 mm
Solderability HAND
Body Color BLACK
Dimensions
Length - Termination 0.158 inch
Actuator Length 0.347 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
