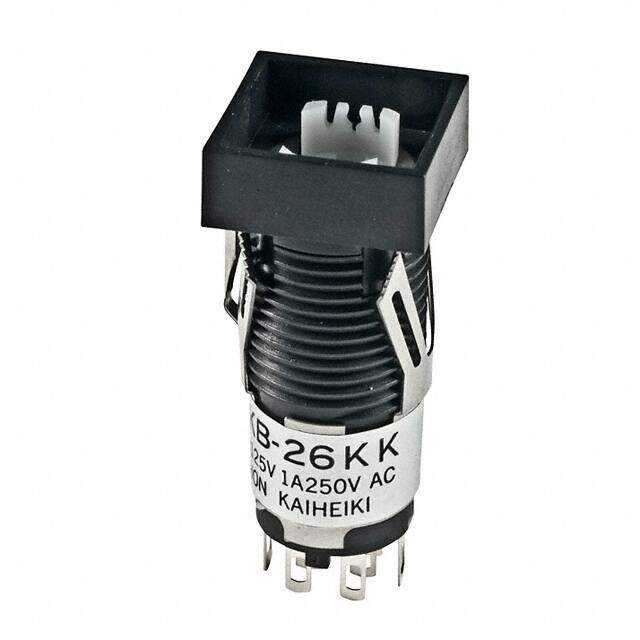

KB26KKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $9.42
Unit Price: USD $9.4248
≥1 USD $9.4248
Inventory: 19
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.347 inch
Length - Termination 0.158 inch
Technical
Body Color BLACK
Solderability HAND
Actuator Travel 2.9972 mm
Contact Voltage(AC)-Max 250V
Contact Timing BREAK-BEFORE-MAKE
Contact (AC) Max Rating R Load 1A@250VAC
Contact Current(AC)-Max 1A
Contact Current Rating 3A
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Sealing EPOXY
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series KB
Published 2002
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material BRASS
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
