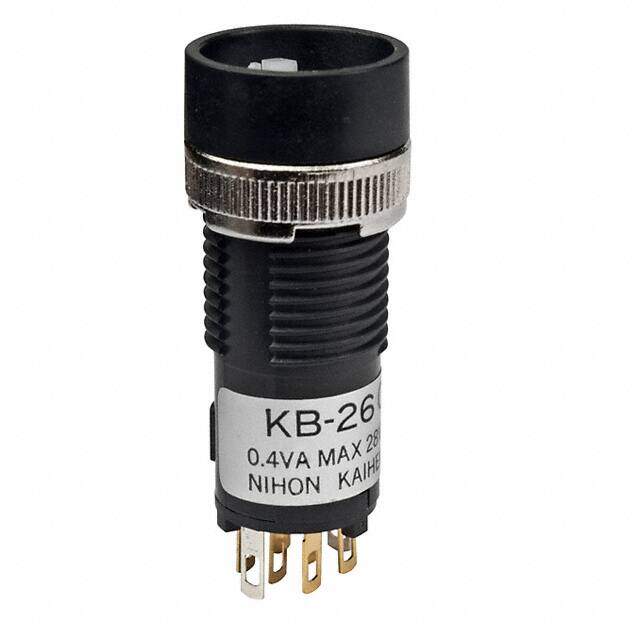

KB26CKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Inventory: 3470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYAMIDE
Housing Material POLYAMIDE
Terminal Material BRASS
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2010
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 750VAC V
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 100mA
Contact Timing BREAK-BEFORE-MAKE
Actuator Travel 2.9972 mm
Solderability HAND
Bushing Length 0.559 inch
Body Color BLACK
Bushing Diameter 0.472 inch
Dimensions
Body Height 11.4808mm
Length - Termination 0.158 inch
Actuator Length 0.347 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
