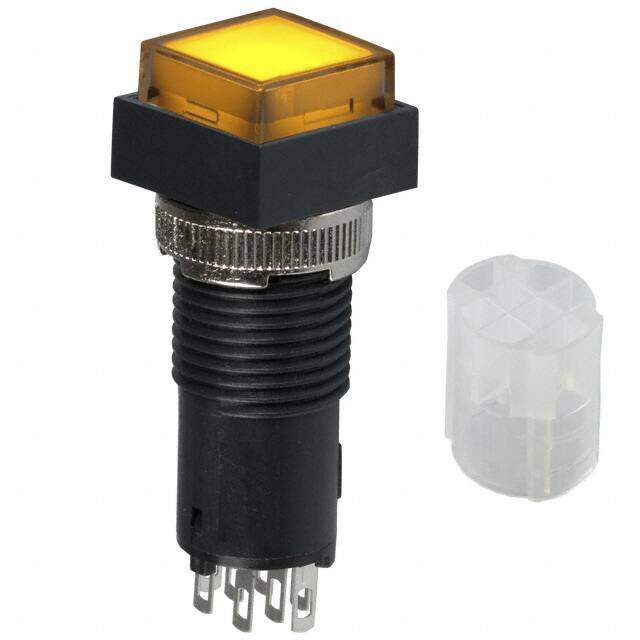

KB25SKW01-5D-JD
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Inventory: 4186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case 125
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Amber
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 1A
Illumination Type LED
Illumination Color Orange
Lens Color Clear
Dimensions
Length 14mm
Width 14mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
