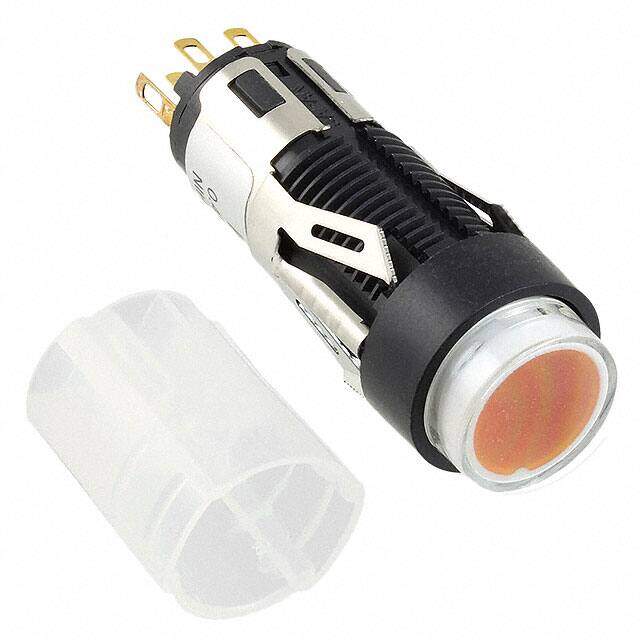

KB25MKG01-5D24-JD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches MINIATURE PUSHBUTTON ILLUMNTD/PANEL MNT
PDF
/
Buying Options
Total Price: USD $18.35
Unit Price: USD $18.348
≥1 USD $18.348
≥10 USD $16.65928
≥100 USD $15.9104
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code unknown
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Amber
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
Illumination Type LED
Compliance
RoHS Status ROHS3 Compliant
