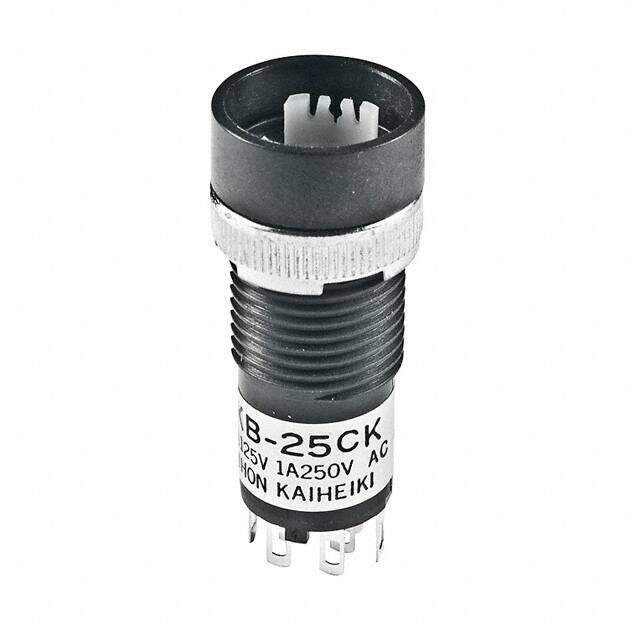

KB25CKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $7.73
Unit Price: USD $7.733708
≥1 USD $7.733708
≥10 USD $7.295954
≥100 USD $6.882968
≥500 USD $6.493365
≥1000 USD $6.125822
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Terminal Material BRASS
Technical
Operating Temperature -25°C~70°C
Packaging Tray
Published 2002
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Depth 14mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1GOhm
Sealing EPOXY
Max Voltage Rating (AC) 250V
Max Current Rating 1A
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 100,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 1A
Contact Timing BREAK-BEFORE-MAKE
Contact Function ON-(ON)
Solderability HAND
Body Color BLACK
Dimensions
Length 14mm
Body Height 11.4808mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
