KB25CKW01-12-FF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 1A 125V
PDF
/
Inventory: 942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material NYLON
Actuator Material POLYCARBONATE
Center Contact Plating SILVER
Center Contact Material SILVER
Terminal Material BRASS
End Contact Material SILVER
End Contact Plating SILVER
Technical
Operating Temperature -25°C~50°C
Packaging Tray
Published 2011
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Terminal Finish Silver (Ag) Flash
Additional Feature 12V LAMP
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 11.9888mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom

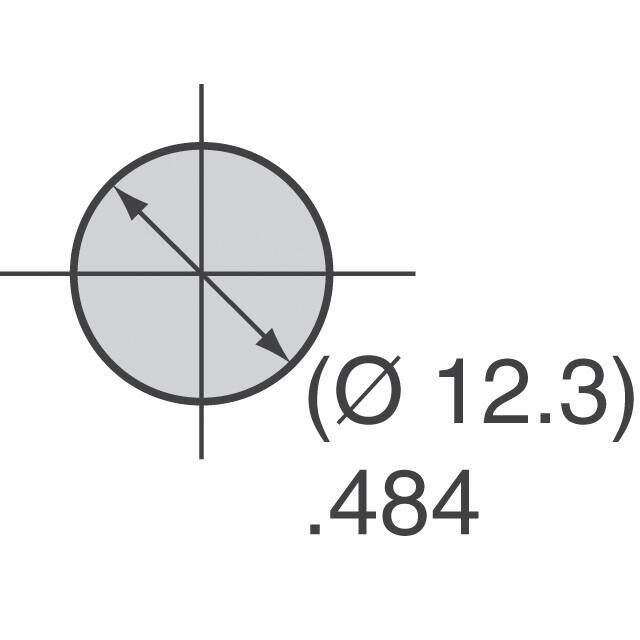

Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Green
Contact Current(DC)-Max 1A
Illumination Voltage (Nominal) 12VAC
Illumination Type, Color Incandescent, Green
Sealing MOLDED
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Solderability WAVE
Bushing Length 0.559 inch
Body Color BLACK
Bushing Diameter 0.472 inch
Dimensions
Body Height 38.5064mm
Length - Termination 0.197 inch
Actuator Length 0.138 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
Alternative Model
