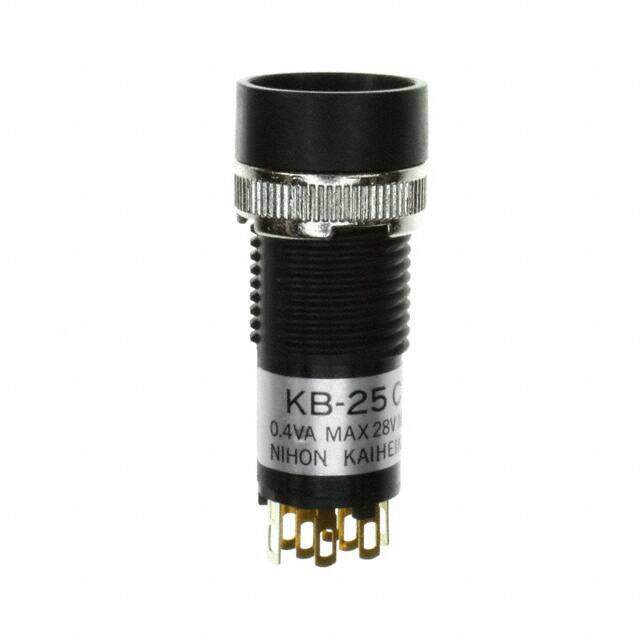

KB25CKG01 image
Favorite
KB25CKG01 image
Favorite

KB25CKG01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Inventory: 9474
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material POLYAMIDE
Housing Material POLYAMIDE
Terminal Material BRASS

Technical

Operating Temperature -25°C~70°C
Packaging Bulk
Published 2010
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 750VAC V
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Solderability HAND
Bushing Length 0.559 inch
Body Color BLACK
Bushing Diameter 0.472 inch

Dimensions

Body Height 11.4808mm
Length - Termination 0.158 inch
Actuator Length 0.347 inch

Compliance

RoHS Status ROHS3 Compliant
