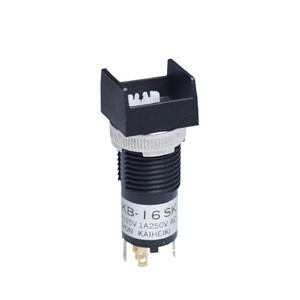

KB16SKG01B
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON
PDF
/
Inventory: 9098
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Insulation Material POLYAMIDE
Housing Material POLYAMIDE
Terminal Material BRASS
Technical
Part Status Obsolete
Reach Compliance Code compliant
Operating Temperature (Max) 70°C
Actuator Type PUSHBUTTON
Operating Temperature (Min) -25°C
Switch Function SPDT
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Termination Type SOLDER LUG
Dielectric Withstanding Voltage 750VAC V
Electrical Life 100000 Cycle(s)
Contact Timing BREAK-BEFORE-MAKE
Contact Function ON-ON
Actuator Travel 2.9972 mm
Switch Action ALTERNATE
Solderability HAND
Bushing Length 0.559 inch
Body Color BLACK
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Diameter 0.472 inch
Bushing Type M12P1
Dimensions
Body Height 11.4808mm
Length - Termination 0.158 inch
Actuator Length 0.346 inch
