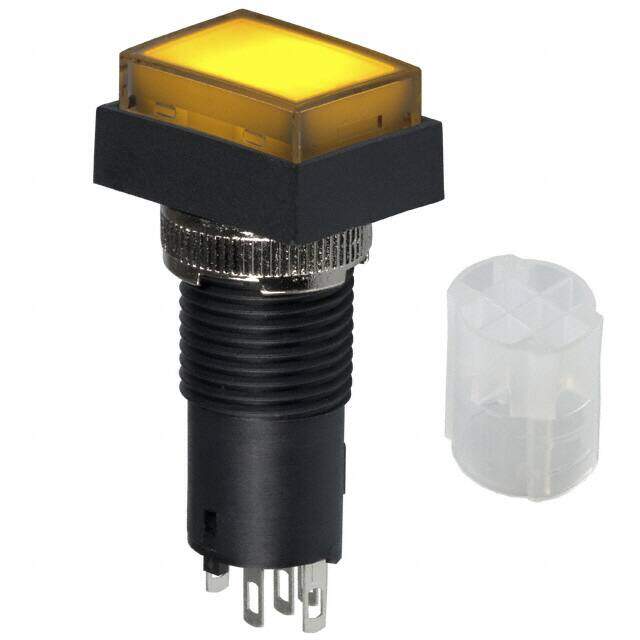

KB16RKW01-5D-JD image
Favorite
KB16RKW01-5D-JD image
Favorite

KB16RKW01-5D-JD

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Inventory: 5570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 14mm
Length 14mm

Technical

Life (Cycles) 100000 cycles
Illumination Color Orange
Illumination Type LED
Contact Current Rating 1A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 50,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Clear (Amber Filter/Diffuser)
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Depth 14mm
Orientation Vertical
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series KB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C

Physical

Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Silver

Supply Chain

Factory Lead Time 10 Weeks
