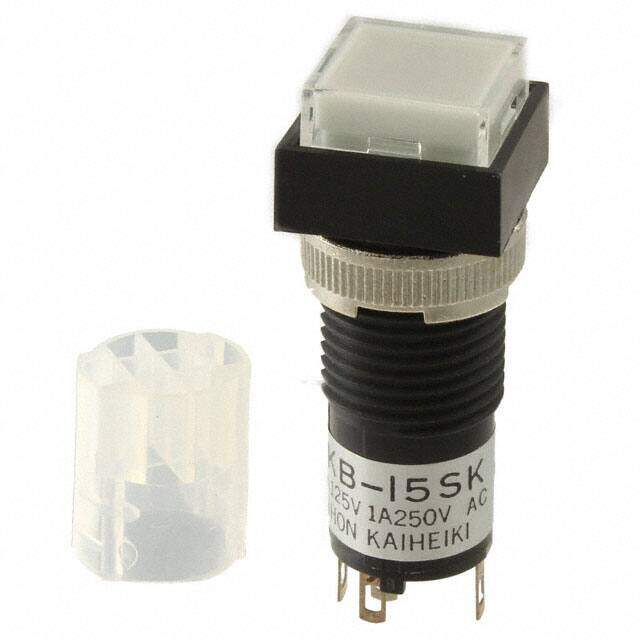

KB15SKW01-5C-JB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Inventory: 5453
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Tray
Published 2006
Series KB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Vertical
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 1.9VDC
Illumination Type, Color LED, Red
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 1A
Illumination Type LED
Illumination Color Red
Life (Cycles) 50000 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
