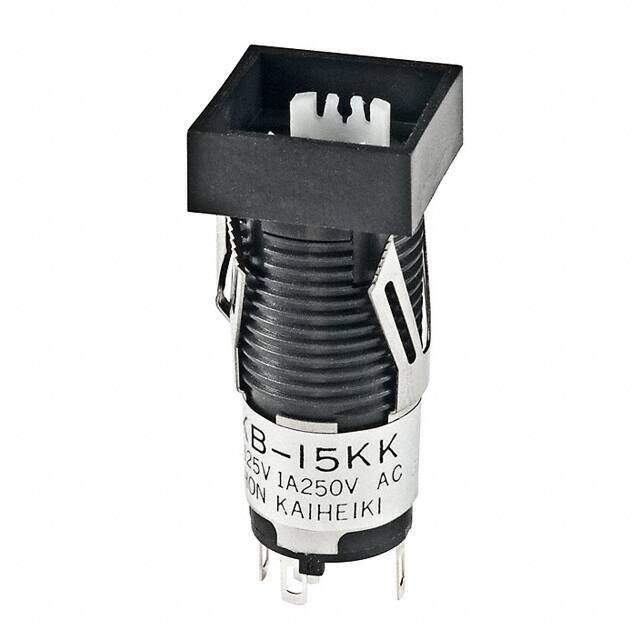

KB15KKW01 image
Favorite
KB15KKW01 image
Favorite

KB15KKW01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 1A 125V
PDF
/
Inventory: 7137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 0.347 inch

Technical

Body Color BLACK
Solderability HAND
Contact Function ON-(ON)
Contact Timing BREAK-BEFORE-MAKE
Contact Current(AC)-Max 1A
Contact Current Rating 3A
Mechanical Life 100,000 Cycles
Number of Poles 1
Electrical Life 50,000 Cycles
Sealing EPOXY
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Orientation Vertical
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Number of Positions 2
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series KB
Published 2002
Packaging Tray
Operating Temperature -25°C~70°C

Physical

Terminal Material BRASS
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver

Supply Chain

Factory Lead Time 8 Weeks
