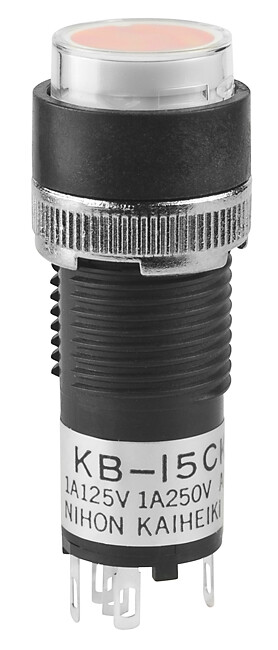

KB15CKW01-05-JC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches SPDT 5V ON(ON) CL/RD
PDF
/
Inventory: 5934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 14mm
Technical
Illumination Color Clear, Red
Illumination Type LED, Lamp, Neon
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 50,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 250V
Illumination Type, Color Incandescent, Red
Illumination Voltage (Nominal) 5VAC
Color - Actuator/Cap Clear (Red Filter/Diffuser)
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Depth 14mm
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series KB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
