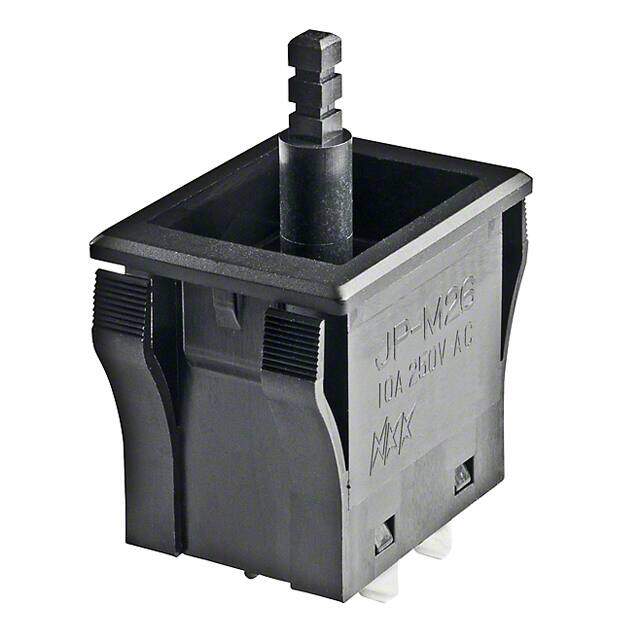

JPM26P
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST 10A 125V
PDF
/
Buying Options
Total Price: USD $12.57
Unit Price: USD $12.5664
≥1 USD $12.5664
≥10 USD $11.352
≥100 USD $10.805344
≥500 USD $10.259216
≥1000 USD $9.894896
≥3000 USD $9.287872
Inventory: 58
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Housing Material MALAMINE
Actuator Material POLYAMIDE
Terminal Material BRASS
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series JP
JESD-609 Code e4
Feature Tactile Feedback
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Current Rating (Amps) 10A AC
Current Rating 10A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 30.988mm
Body Breadth 21.209 mm
Actuator Type Plunger for Cap
Circuit DPST
Switch Function Off-On
Panel Cutout Dimensions Rectangular - 28.00mm x 21.20mm
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Electrical Life 25,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 25,000 Cycles
Contact Current Rating 10A
Contact (AC) Max Rating R Load 10A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Travel 3.302 mm
Dimensions
Body Height 27.5082mm
Length - Termination 0.283 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
