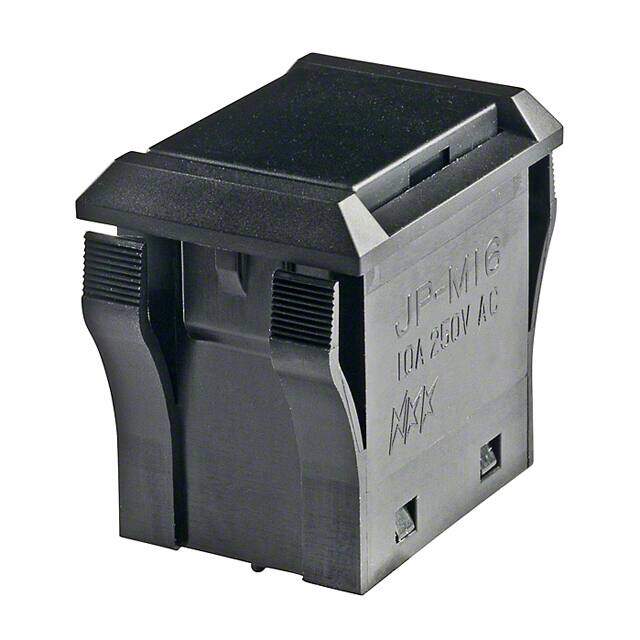

JPM16B-A
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 10A 125V
PDF
/
Buying Options
Total Price: USD $10.39
Unit Price: USD $10.3928
≥1 USD $10.3928
≥10 USD $9.39048
≥100 USD $8.938688
≥500 USD $8.48672
≥1000 USD $8.185434
≥3000 USD $7.683245
Inventory: 111
Minimum: 1
-
+
Technical Details
Technical
JESD-609 Code e4
Feature Tactile Feedback
Series JP
Packaging Tray
Operating Temperature -10°C~70°C
Contact Current Rating 10A
Mechanical Life 25,000 Cycles
Throw Configuration DPDT, SPST
Electrical Life 25,000 Cycles
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 28.00mm x 21.20mm
Switch Function Off-On
Circuit SPST
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 10A
Orientation Vertical
Current Rating (Amps) 10A AC
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Physical
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 12 Weeks
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
