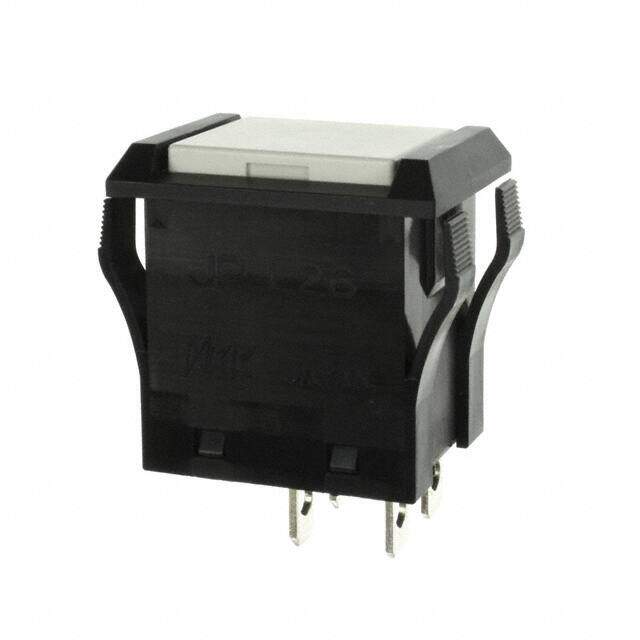

JPL26B/U-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST 16A 125V
PDF
/
Buying Options
Total Price: USD $14.48
Unit Price: USD $14.4848
≥1 USD $14.4848
≥10 USD $12.98968
≥100 USD $12.41856
≥500 USD $11.77616
≥1000 USD $11.347952
≥3000 USD $10.634237
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Body Height 27.5082mm
Length 31mm
Technical
Actuator Travel 3.302 mm
Contact (AC) Max Rating R Load 16A@250VAC
Illumination Type Illuminated
Mechanical Life 25,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 25,000 Cycles
Max Current Rating 16A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Ivory
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Rectangular - 28.00mm x 21.20mm
Switch Function Off-On
Circuit DPST
Actuator Type Rectangular, Button
Body Breadth 21.209 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 16A
Depth 24mm
Current Rating (Amps) 16A AC
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Tactile Feedback
Series JP
Published 2011
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Terminal Material BRASS
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
