JPL26B/U
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description

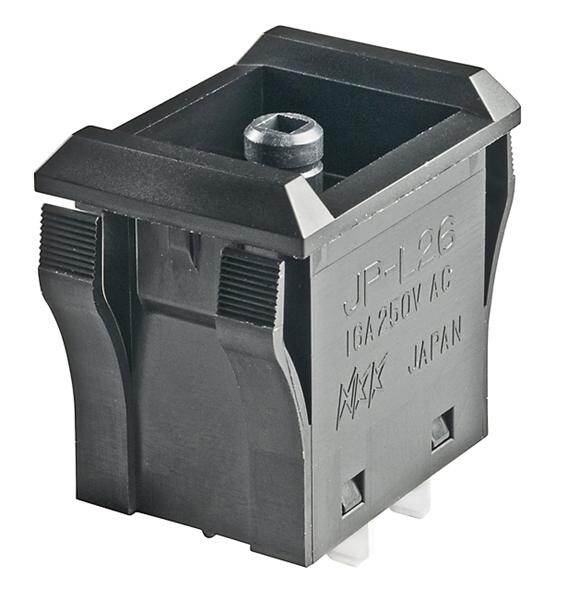

Pushbutton Switches DPST OFF-ON TV8 RTED NO CAP W/UL MARKING
PDF
/
Buying Options
Total Price: USD $13.44
Unit Price: USD $13.444556
≥1 USD $13.444556
≥10 USD $12.683541
≥100 USD $11.965612
≥500 USD $11.288313
≥1000 USD $10.649351
Inventory: 1137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.283 inch
Body Height 27.5082mm
Technical
Actuator Travel 3.302 mm
Contact (AC) Max Rating R Load 16A@250VAC
Mechanical Life 25,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 25,000 Cycles
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Rectangular - 28.00mm x 21.20mm
Switch Function Off-On
Circuit DPST
Actuator Type Rectangular, Button
Body Breadth 21.209 mm
Body Length or Diameter 30.988mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 16A
Current Rating (Amps) 16A AC
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Tactile Feedback
Series JP
Published 2011
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
End Contact Material SILVER ALLOY
Terminal Material BRASS
Center Contact Material SILVER ALLOY
Actuator Material POLYAMIDE
Housing Material MALAMINE
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
