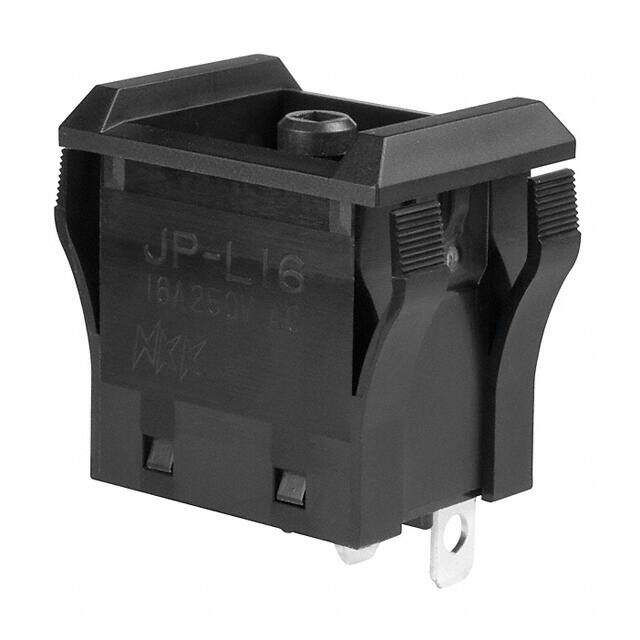

JPL16B
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 16A 125V
PDF
/
Buying Options
Total Price: USD $10.17
Unit Price: USD $10.1728
≥1 USD $10.1728
≥10 USD $9.1916
≥100 USD $8.74896
≥500 USD $8.306496
≥1000 USD $8.01152
≥3000 USD $7.520058
Inventory: 114
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Housing Material Polyamide
Actuator Material POLYPHENYLENE OXIDE
Terminal Material BRASS
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series JP
JESD-609 Code e4
Feature Tactile Feedback
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Additional Feature TV8 RATING
Current Rating (Amps) 16A AC
Current Rating 16A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 26.5938mm
Body Breadth 21.209 mm
Actuator Type Rectangular, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Rectangular - 28.00mm x 21.20mm
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Sealing EPOXY
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 25,000 Cycles
Illumination Type Illuminated
Contact (AC) Max Rating R Load 16A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Travel 3.302 mm
Solderability WAVE
Actuator Finish MATTE
Dimensions
Body Height 37.6936mm
Length - Termination 0.224 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
