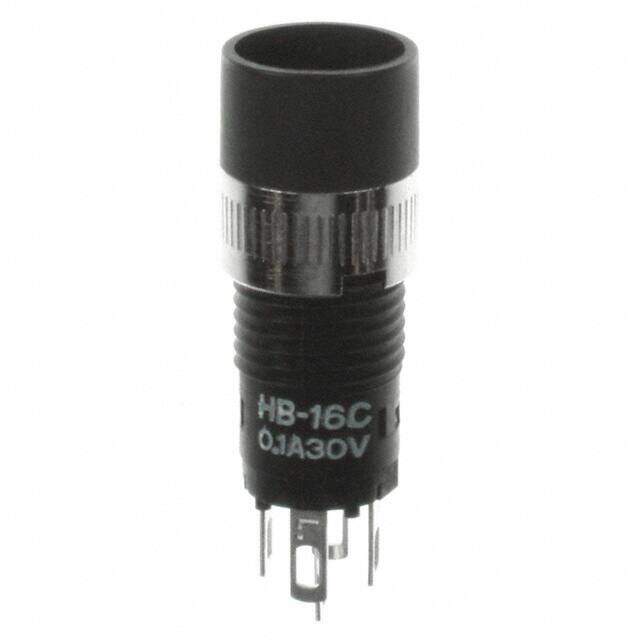

HB16CKW01-5D-DB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches SPDT ON-ON RND AMB LED/AMB-WHT CAP
PDF
/
Buying Options
Total Price: USD $10.73
Unit Price: USD $10.7272
≥1 USD $10.7272
≥10 USD $9.68968
≥100 USD $9.223456
≥500 USD $8.7571
≥1000 USD $8.446134
≥3000 USD $7.927999
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Center Contact Material PHOSPHOR BRONZE
Terminal Material PHOSPHOR BRONZE
End Contact Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~50°C
Packaging Tray
Published 2012
Series HB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Power Rating 100mW
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Orientation Vertical
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 30V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 8.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Amber
Contact Current(DC)-Max 0.1A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Amber
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 100mA
Illumination Type Illuminated, LED
Illumination Color Orange
Contact Current(AC)-Max 0.1A
Contact (AC) Max Rating R Load 0.1A@30VAC
Contact (DC) Max Rating R Load 0.1A@30VDC
Actuator Travel 2.9972 mm
Body Color BLACK
Dimensions
Length - Termination 0.197 inch
Actuator Length 0.138 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
