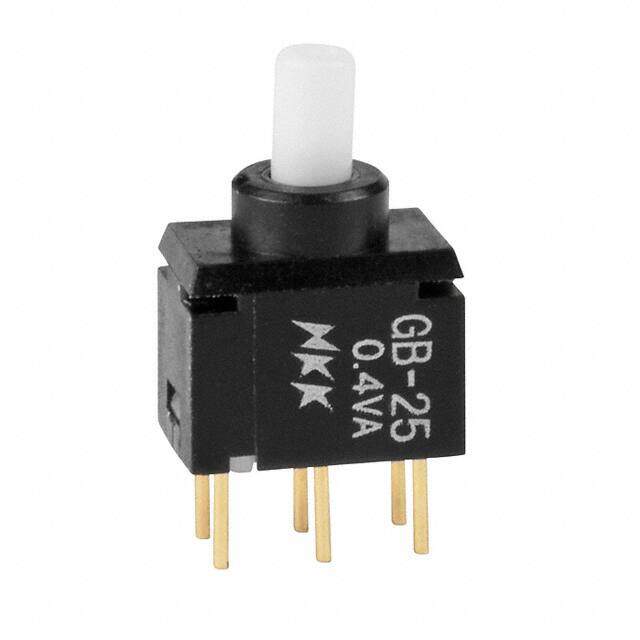

GB25AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
NKK SWITCHES GB-25AP Pushbutton Switch, DPDT, On-(On), 28 V, 28 V, 100 mA, Solder
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.9952
≥1 USD $3.9952
≥10 USD $3.5992
≥100 USD $3.418976
≥500 USD $3.27492
≥1000 USD $3.168
Inventory: 199
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount PCB, Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Actuator Material Polyacetal
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2006
Series GB
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Depth 4.5mm
Termination Style PC Pin
Voltage - Rated AC 28V
Approval Agency CSA, UL
Actuator Type Plunger for Cap
Lead Length 2.6mm
Circuit DPDT
Switch Function On-Mom
Insulation Resistance 500MOhm
Color - Actuator/Cap White
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Electrical Life 50,000 Cycles
Number of Poles 2
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
Contact Current Rating 100mA
Dimensions
Height 7mm
Length 7mm
Width 7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
