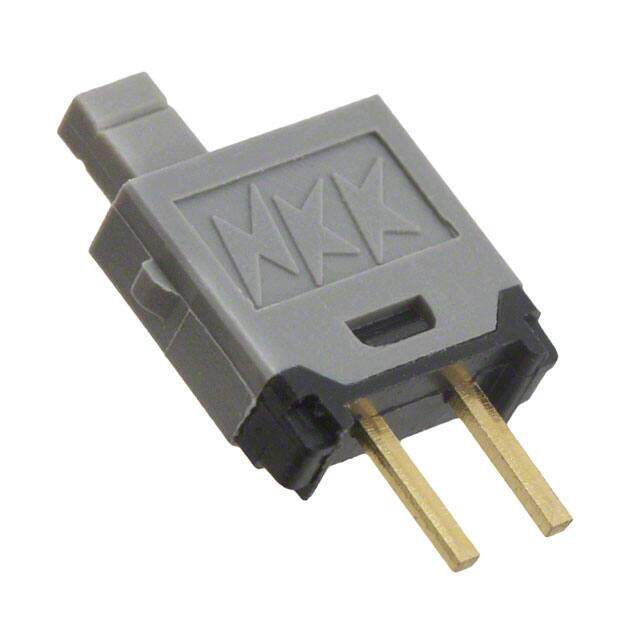

GB215AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPST OFF (ON) STRAIGHT PC .4VA
PDF
/
Buying Options
Total Price: USD $2.19
Unit Price: USD $2.1912
≥1 USD $2.1912
≥10 USD $1.96152
≥100 USD $1.861024
≥500 USD $1.76968
≥1000 USD $1.68762
≥3000 USD $1.614606
Inventory: 2365
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 7.0104mm
Length 7.6mm
Technical
Solderability WAVE
Contact Function OFF-(ON)
PCB Hole Count 2
Contact Current Rating 100mA
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Gray
Insulation Resistance 500000000Ohm
Contact Resistance 0.08mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Body Breadth 2.4892 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 2.5mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series GB2
Published 2010
Packaging Tray
Operating Temperature -25°C~70°C
Physical
Terminal Material BRASS
Actuator Material Glass fibre, Polyamide
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 5 Weeks
