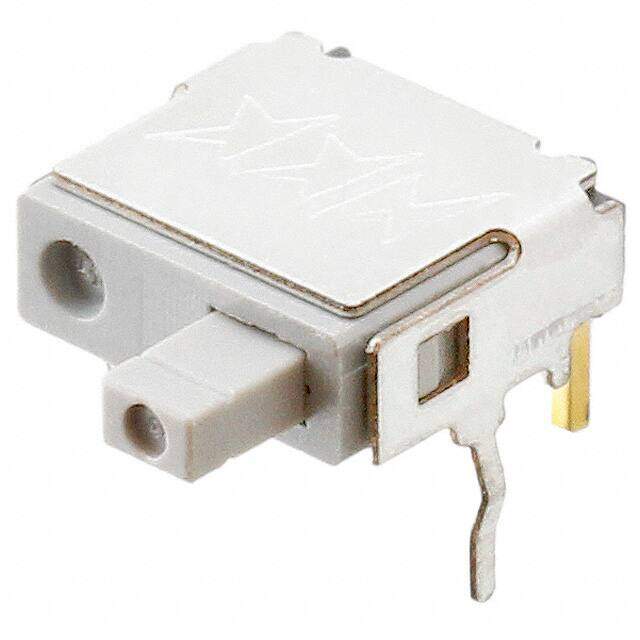

GB215AH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch; Ultra-Thin P/B; SPST; OFF-(ON); No Cap; 0.4VA; 28VAC/DC; R/A PC Term W/1 Act
PDF
/
Buying Options
Total Price: USD $3.45
Unit Price: USD $3.4496
≥1 USD $3.4496
≥10 USD $3.08352
≥100 USD $2.921248
≥500 USD $2.81798
≥1000 USD $2.670474
≥3000 USD $2.552458
Inventory: 1518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Polyamide
Actuator Material Glass fibre, Polyamide
Terminal Material BRASS
Technical
Operating Temperature -25°C~70°C
Packaging Tray
Published 2010
Series GB2
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 7.5946mm
Body Breadth 3.2512 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Gray
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
Contact Current Rating 100mA
Switching Voltage 28V
PCB Hole Count 4
Contact Function OFF-(ON)
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Dimensions
Body Height 7.9756mm
Length - Termination 0.122 inch
Actuator Length 0.106 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
