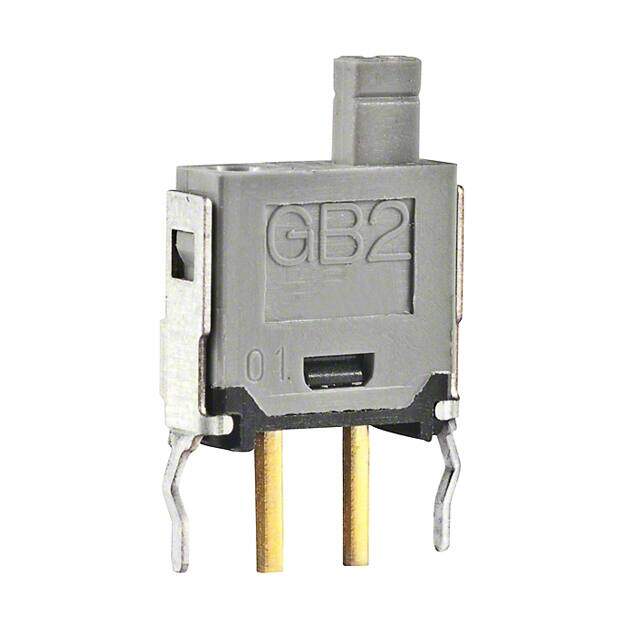

GB215AB image
Favorite
GB215AB image
Favorite

GB215AB

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $3.45
Unit Price: USD $3.4496
≥1 USD $3.4496
≥10 USD $3.08352
≥100 USD $2.921248
≥500 USD $2.818112
≥1000 USD $2.670448
≥3000 USD $2.552458
Inventory: 121
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Actuator Material Glass fibre, Polyamide
Terminal Material BRASS

Technical

Operating Temperature -25°C~70°C
Packaging Box
Published 2006
Series GB2
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Depth 2.75mm
Termination Style PC Pin
Voltage - Rated AC 28V
Body Breadth 2.7432 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Gray
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
PCB Hole Count 4
Contact Function OFF-(ON)
Solderability WAVE

Dimensions

Length 8.5mm
Body Height 7.0104mm

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
