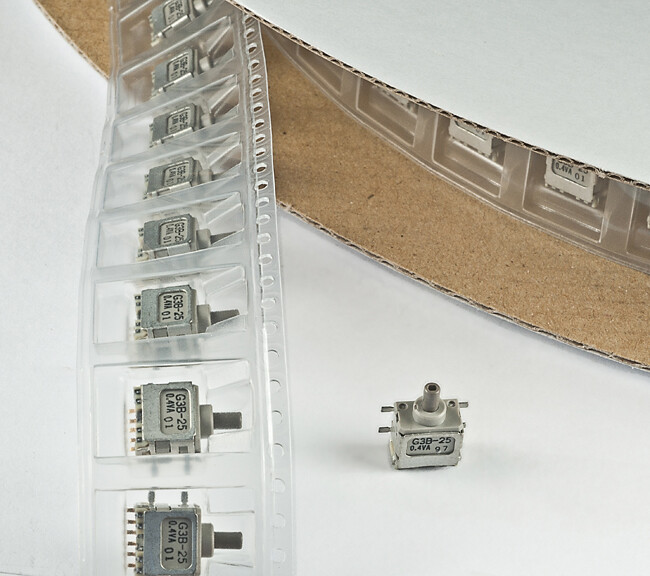

G3B25AH-R
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description
Pushbutton Switches DPDT ON-(ON) R/A
PDF
/
Inventory: 6929
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SMD/SMT
Insulation Material POLYPHENYLENE SULPHIDE
Housing Material POLYPHENYLENE SULPHIDE
Actuator Material POLYPHENYLENE SULPHIDE
Center Contact Material PHOSPHOR BRONZE
Terminal Material PHOSPHOR BRONZE
End Contact Material PHOSPHOR BRONZE
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series G3B
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Gull Wing
Voltage - Rated AC 28V
Body Length or Diameter 8.509mm
Body Breadth 5.5626 mm
Actuator Type Round, Plunger
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Gray
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Function ON-(ON)
Actuator Travel 1.0922 mm
Bushing Length 0.059 inch
Dimensions
Body Height 7.493mm
Actuator Length 0.13 inch
Compliance
RoHS Status ROHS3 Compliant
