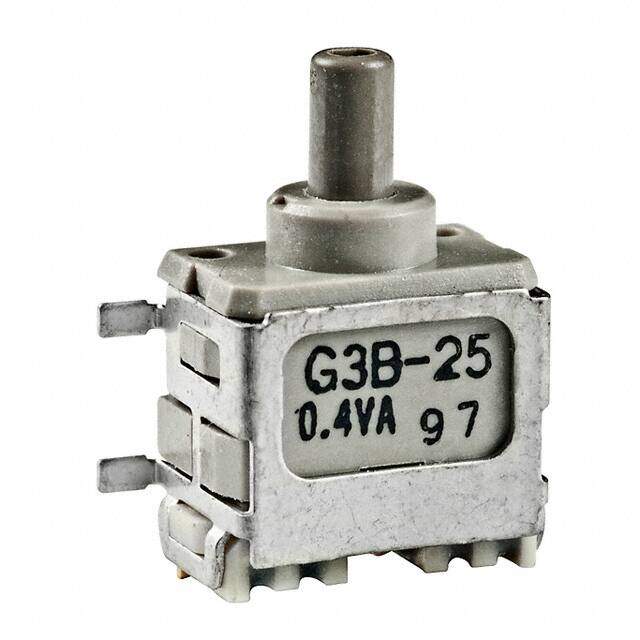

G3B25AH
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $8.44
Unit Price: USD $8.4392
≥1 USD $8.4392
≥10 USD $7.60496
≥100 USD $7.286752
≥500 USD $6.92846
≥1000 USD $6.649614
≥3000 USD $6.251485
Inventory: 514
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SMD/SMT
Actuator Material Polyphenylene
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2006
Series G3B
JESD-609 Code e4
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Depth 12.85mm
Termination Style Gull Wing
Voltage - Rated AC 28V
Body Breadth 5.5626 mm
Actuator Type Round, Plunger
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Gray
Sealing EPOXY
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
PCB Hole Count 10
Contact Function ON-(ON)
Solderability WAVE
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Diameter 0.157 inch
Dimensions
Length 11mm
Body Height 12.2936mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
