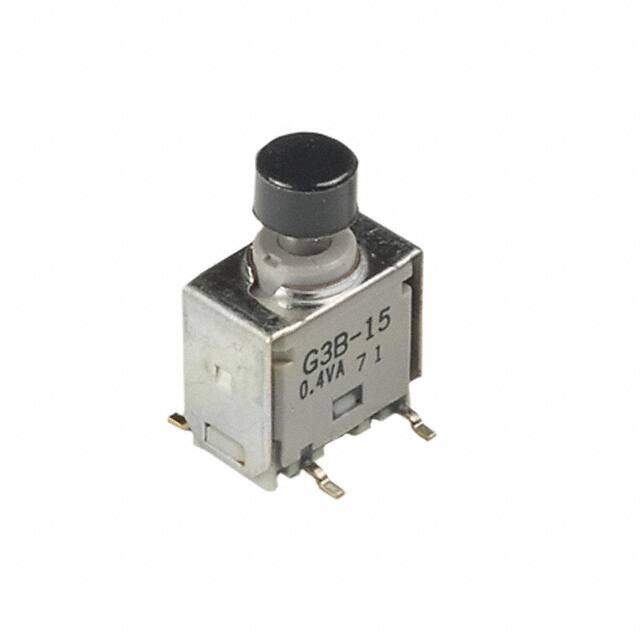

G3B15AP-S-YA
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description
Switch; Sealed; P/B; SPDT; ON-(ON); W/Red Cap; 0.4VA; 28VAC/DC; Gull Wing Up Mnt; Tube
PDF
/
Buying Options
Total Price: USD $7.02
Unit Price: USD $7.0224
≥1 USD $7.0224
≥10 USD $6.30872
≥100 USD $6.01744
≥500 USD $5.75872
≥1000 USD $5.532208
≥3000 USD $5.241069
Inventory: 1039
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Actuator Material Polyphenylene
Technical
Operating Temperature -30°C~85°C
Packaging Tube
Published 2012
Series G3B
JESD-609 Code e4
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Depth 7.6mm
Termination Style Gull Wing
Voltage - Rated AC 28V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.014A
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
Contact Current Rating 100mA
Contact Current(AC)-Max 0.014A
Contact (AC) Max Rating R Load .014A@28VAC
Contact (DC) Max Rating R Load .014A@28VDC
Contact Function ON-(ON)
Operating Force-Max 2 N
Dimensions
Length 8.5mm
Body Height 7.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
