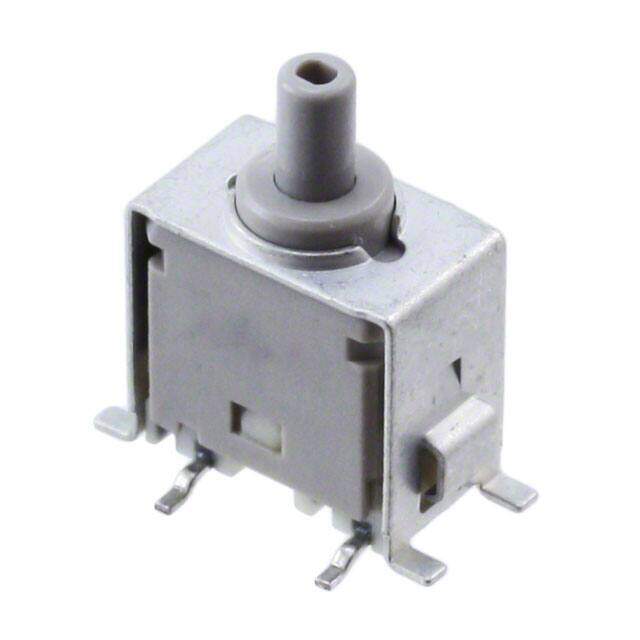

G3B15AP-S
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Inventory: 8798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT
Housing Material Polyphenylene
Center Contact Material PHOSPHOR BRONZE
Terminal Material PHOSPHOR BRONZE
End Contact Material PHOSPHOR BRONZE
Technical
Operating Temperature -30°C~85°C
Packaging Tube
Published 2006
Series G3B
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Termination Style Gull Wing
Voltage - Rated AC 28V
Body Length or Diameter 8.509mm
Body Breadth 5.0038 mm
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.08mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Gray
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Function ON-(ON)
Actuator Travel 1.0922 mm
Bushing Length 0.059 inch
Life (Cycles) 50000 cycles
Dimensions
Body Height 7.493mm
Actuator Length 0.13 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
