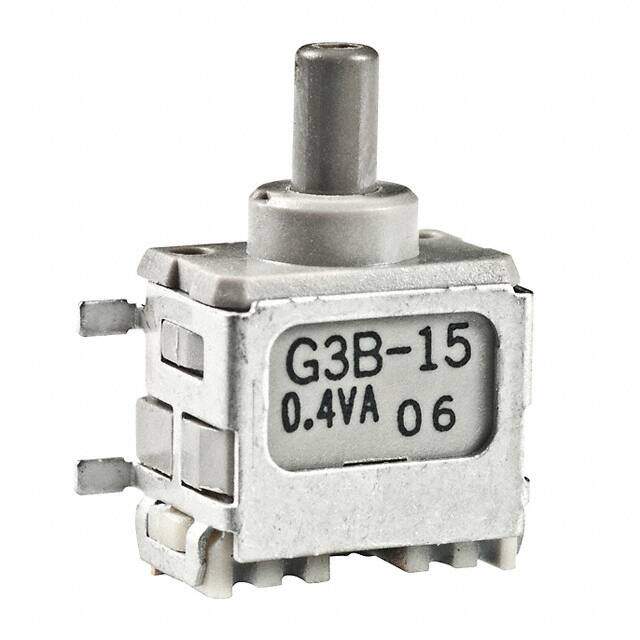

G3B15AH

NKK Switches
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $7.02
Unit Price: USD $7.0224
≥1 USD $7.0224
≥10 USD $6.30872
≥100 USD $6.01744
≥500 USD $5.75872
≥1000 USD $5.532234
≥3000 USD $5.241086
Inventory: 52
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Body Height 12.2936mm
Length 11mm

Technical

Bushing Diameter 0.157 inch
Solderability WAVE
Contact Function ON-(ON)
PCB Hole Count 7
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Sealing EPOXY
Color - Actuator/Cap Gray
Insulation Resistance 500000000Ohm
Contact Resistance 0.08mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Body Breadth 5.5626 mm
Voltage - Rated AC 28V
Termination Style Gull Wing
Depth 12.85mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series G3B
Published 2006
Packaging Tray
Operating Temperature -30°C~85°C

Physical

Actuator Material Polyphenylene
Package / Case SMD/SMT
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
