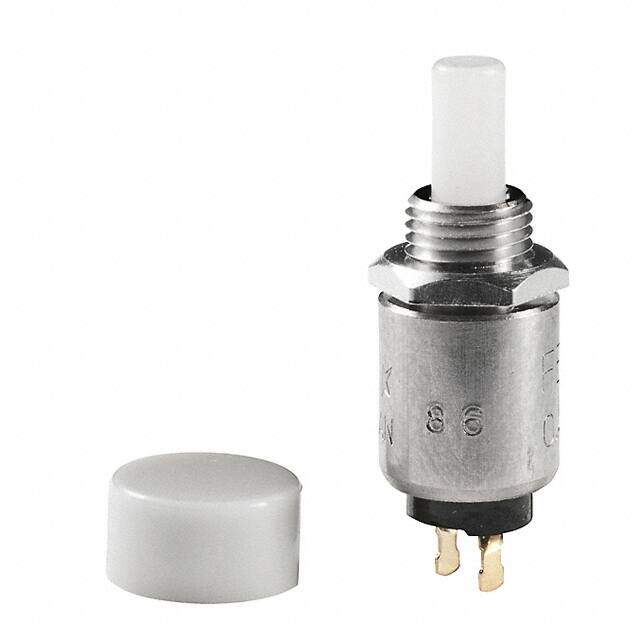

FB15ANEP4-HB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.840686
≥1 USD $1.840686
Inventory: 6191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Brass
Technical
Operating Temperature -10°C~70°C
Packaging Tray
Published 2011
Series FB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Turret
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Termination Style Solder Turret
Voltage - Rated AC 28V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 5.30mm Dia
Color - Actuator/Cap White
Electrical Life 50,000 Cycles
Throw Configuration SPST
Mechanical Life 50,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
