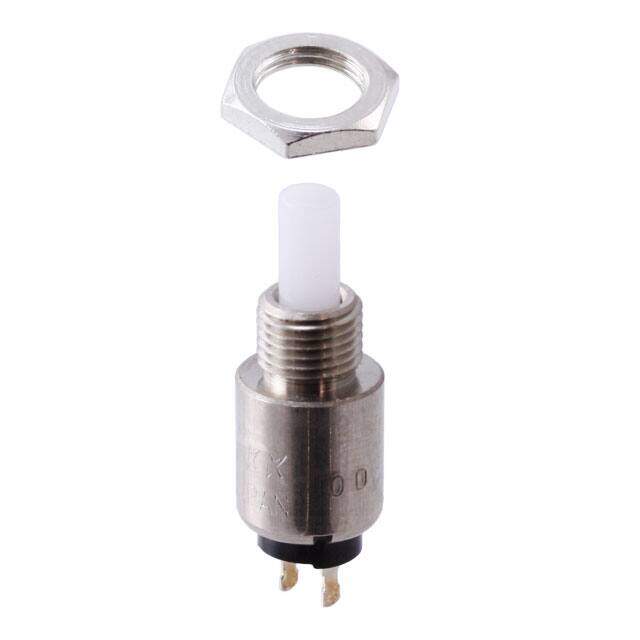

FB15ANEP2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 125V
PDF
/
Buying Options
Total Price: USD $3.92
Unit Price: USD $3.916
≥1 USD $3.916
≥10 USD $3.49536
≥100 USD $3.309856
≥500 USD $3.19176
≥1000 USD $3.03974
≥3000 USD $2.904616
Inventory: 1136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Number of Pins 2
Housing Material Brass
Actuator Material Polyacetal
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -10°C~70°C
Packaging Tray
Published 2003
Series FB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Turret
ECCN Code EAR99
Type Standard
Current Rating (Amps) 500mA AC
Orientation Vertical
Depth 7mm
Current Rating 500mA
Termination Style Solder Turret
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 5.30mm Dia
Contact Resistance 0.03mOhm
Insulation Resistance 100MOhm
Color - Actuator/Cap White
Max Voltage Rating (AC) 125V
Max Current Rating 500mA
Electrical Life 50,000 Cycles
Number of Poles 1
Throw Configuration SPST
Mechanical Life 50,000 Cycles
Contact Current Rating 500mA
Contact Current(AC)-Max 0.5A
Contact Function OFF-(ON)
Solderability WAVE
Dimensions
Diameter 5mm
Height 528.32mm
Length 7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
