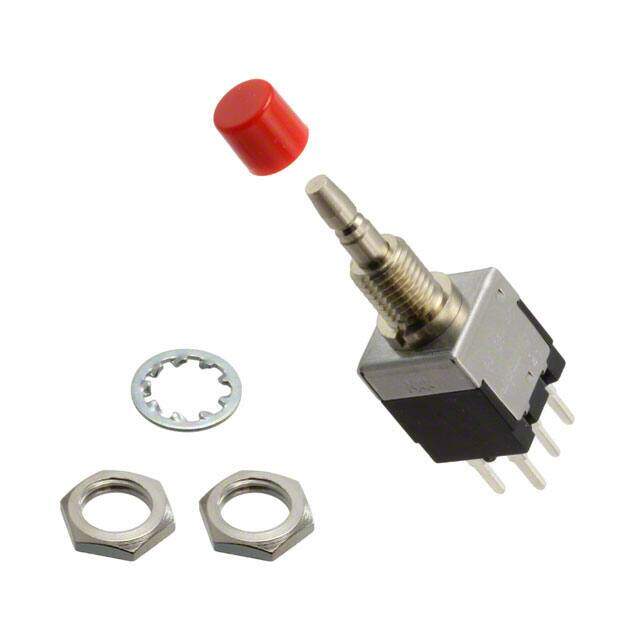

EB2085P-BC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MINIATURE PUSHBUTTON BUSHING MOUNT
PDF
/
Buying Options
Total Price: USD $6.67
Unit Price: USD $6.6704
≥1 USD $6.6704
≥10 USD $5.99632
≥100 USD $5.72
≥500 USD $5.473952
≥1000 USD $5.258704
≥3000 USD $4.981891
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material BRASS
Center Contact Plating SILVER
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material SILVER
End Contact Plating SILVER
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 11.7094mm
Body Breadth 10.9982 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Red
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
PCB Hole Count 6
Actuator Travel 2.2098 mm
Bushing Length 0.268 inch
Actuator Finish NICKEL
Dimensions
Body Height 15.2146mm
Length - Termination 0.252 inch
Actuator Length 0.366 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
