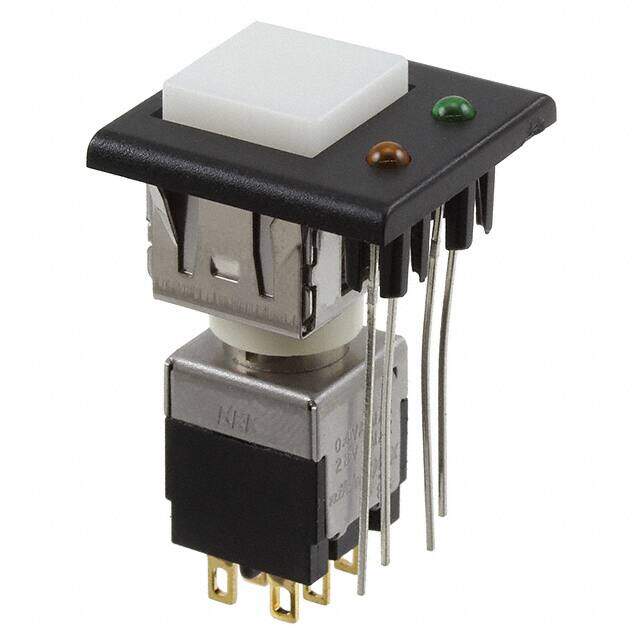

EB2085G-B-J33AEF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $12.94
Unit Price: USD $12.9448
≥1 USD $12.9448
≥10 USD $11.60632
≥100 USD $11.096096
≥500 USD $10.522336
≥1000 USD $10.139624
≥3000 USD $9.501923
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.157 inch
Body Height 4.4958mm
Technical
Illumination Color Green, Yellow
Illumination Type LED
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Green/Yellow
Illumination Voltage (Nominal) 2.1 2.25VDC
Color - Actuator/Cap White
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Rectangular - 18.40mm x 15.00mm
Switch Function On-On
Circuit DPDT
Actuator Type Square, Button
Body Length or Diameter 13.9954mm
Voltage - Rated AC 28V
Termination Style Solder Lug
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series EB
Published 2012
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
End Contact Material SILVER
Terminal Material COPPER
Center Contact Material COPPER
Actuator Material BRASS
Housing Material Resin
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 10 Weeks
