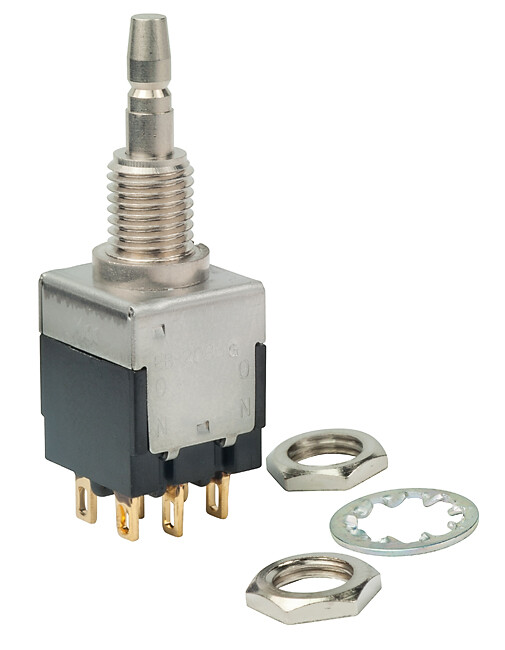

EB2085G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Alternate Contact Solder Lug Panel Mount
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7144
≥1 USD $6.7144
≥10 USD $6.03152
≥100 USD $5.289064
≥500 USD $4.423021
Inventory: 46
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material BRASS
Center Contact Plating GOLD
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material SILVER
End Contact Plating GOLD
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 13.9954mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact (AC) Max Power Rating R Load 0.4VA@28VAC
Dimensions
Body Height 4.4958mm
Length - Termination 0.157 inch
Compliance
RoHS Status ROHS3 Compliant
