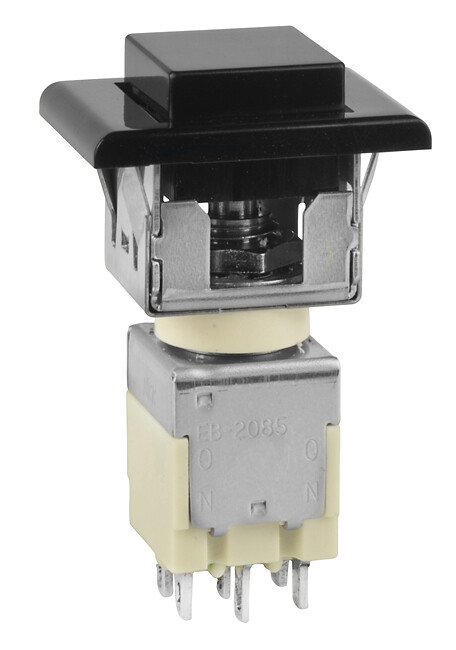

EB2085-A-J51A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON ON DPDT Square Button 3A 125VAC Alternate Contact Solder Lug Panel Mount
PDF
/
Inventory: 4737
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Resin
Actuator Material Brass
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2012
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Current Rating (Amps) 3A AC
Depth 15.6mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 15.00mm x 12.50mm
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 125V
Max Current Rating 3A
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Life (Cycles) 100000 cycles
Dimensions
Length 21.5mm
Body Height 4.4958mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
