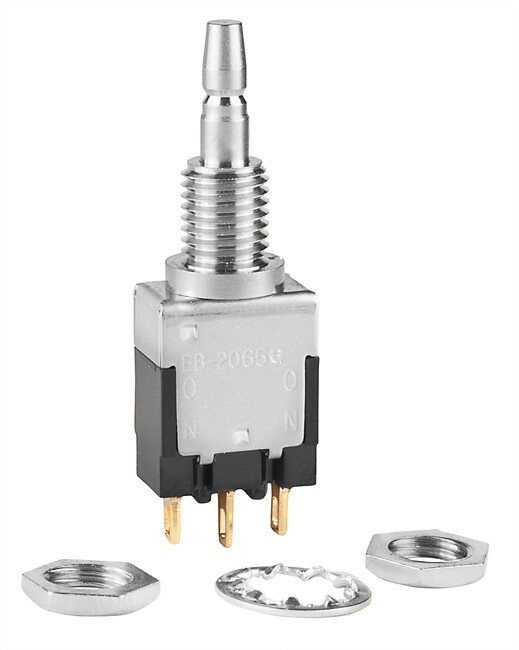

EB2065G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MINIATURE PUSHBUTTON BUSHING MOUNT
PDF
/
Inventory: 8898
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.157 inch
Body Height 3.4036mm
Technical
Contact Voltage(AC)-Max 125V
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.0104 mm
Body Length or Diameter 10.9982mm
Voltage - Rated AC 28V
Termination Style Solder Lug
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series EB
Published 2011
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
End Contact Plating SILVER
End Contact Material SILVER
Terminal Material COPPER
Center Contact Material COPPER
Center Contact Plating SILVER
Actuator Material BRASS
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 10 Weeks
