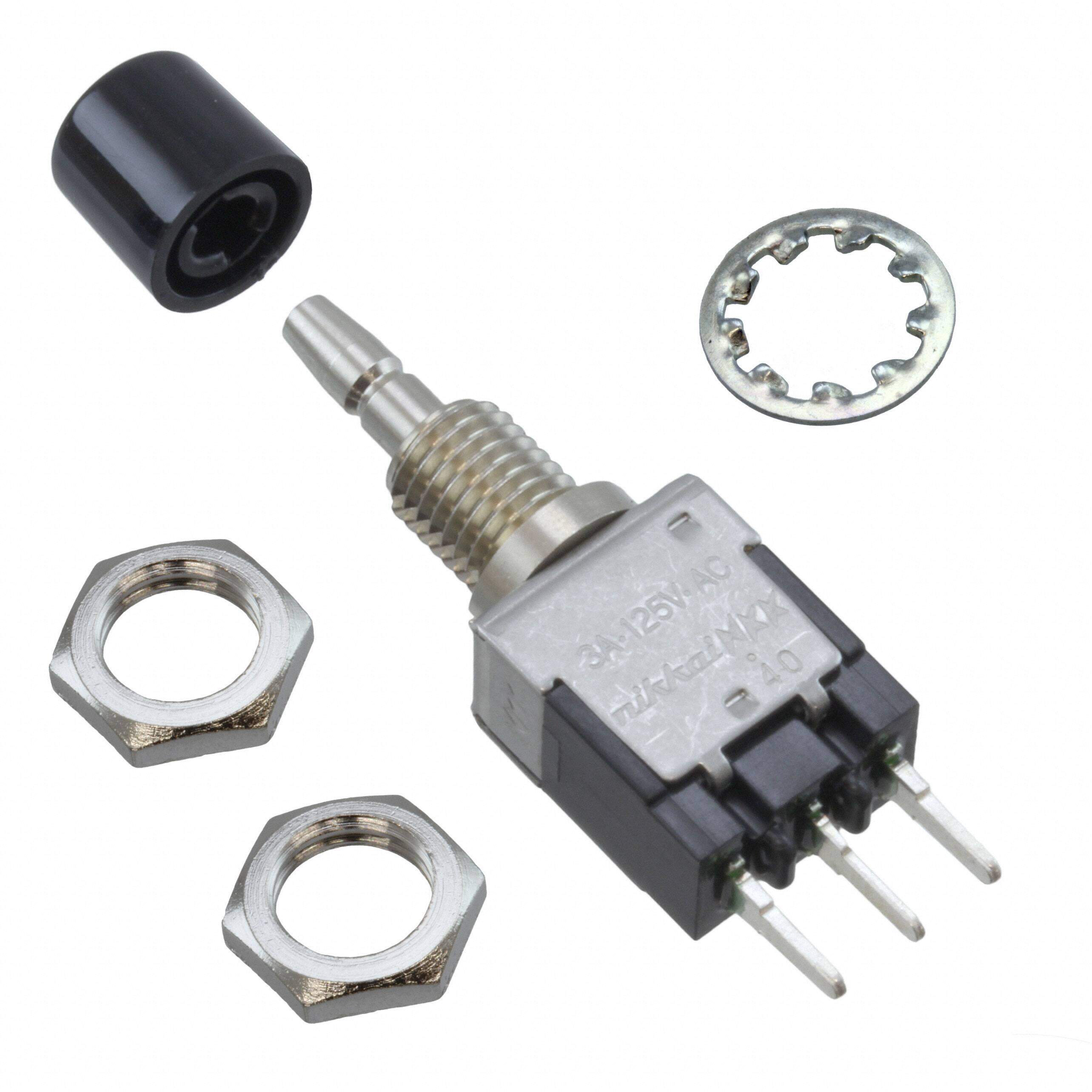

EB2011P-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $5.21
Unit Price: USD $5.2096
≥1 USD $5.2096
≥10 USD $4.69304
≥100 USD $4.45808
≥500 USD $4.270464
≥1000 USD $4.129752
≥3000 USD $3.918534
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material STAINLESS STEEL
Actuator Material BRASS
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material SILVER
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2007
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Vertical
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 10.9982mm
Body Breadth 7.0104 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
PCB Hole Count 3
Contact Function ON-(ON)
Actuator Travel 1.6002 mm
Bushing Length 0.268 inch
Bushing Diameter 0.236 inch
Actuator Finish CHROME
Dimensions
Body Height 15.2146mm
Length - Termination 0.252 inch
Actuator Length 0.315 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
