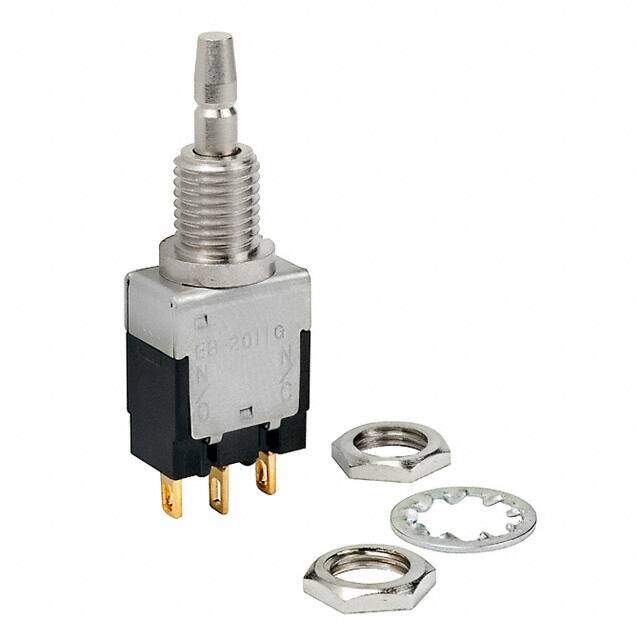

EB2011G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $4.89
Unit Price: USD $4.8928
≥1 USD $4.8928
≥10 USD $4.4088
≥100 USD $4.188096
≥500 USD $4.011744
≥1000 USD $3.879392
≥3000 USD $3.68104
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material BRASS
Center Contact Plating GOLD
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material SILVER
End Contact Plating GOLD
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2014
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 10.9982mm
Body Breadth 7.0104 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Function ON-(ON)
Contact (AC) Max Power Rating R Load 0.4VA@28VAC
Dimensions
Body Height 3.4036mm
Length - Termination 0.157 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
