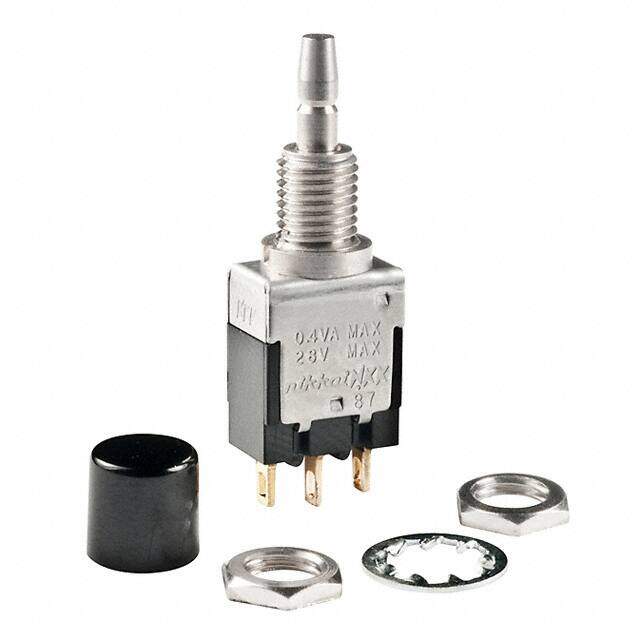

EB2011G-BA
RoHS
RoHS compliant
RoHS compliantPackage 315
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.368
≥1 USD $5.368
≥10 USD $4.83472
≥100 USD $4.593248
≥500 USD $4.4
≥1000 USD $4.254888
≥3000 USD $4.037299
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 315
Housing Material STAINLESS STEEL
Actuator Material Brass
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2007
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Depth 8mm
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Breadth 7.0104 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 100,000 Cycles
Contact Current Rating 3A
Contact Function ON-(ON)
Life (Cycles) 100000 cycles
Bushing Diameter 0.236 inch
Actuator Finish CHROME
Dimensions
Length 11mm
Body Height 15.2146mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
