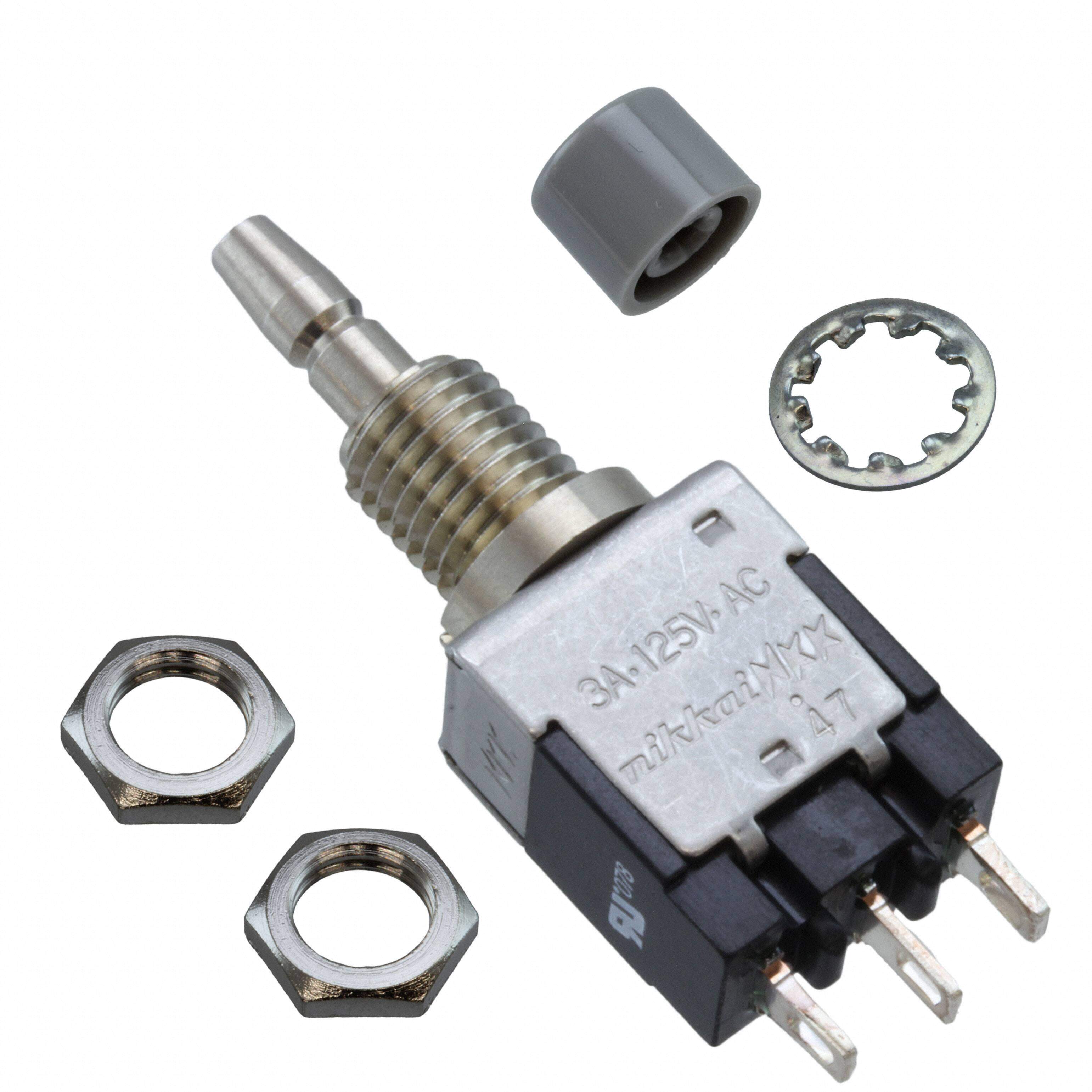

EB2011-CH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON-(ON) 6A .394 DIA GRY CAP SLDR LUG
PDF
/
Buying Options
Total Price: USD $5.98
Unit Price: USD $5.9752
≥1 USD $5.9752
≥10 USD $5.3768
≥100 USD $5.106816
≥500 USD $4.890512
≥1000 USD $4.728416
≥3000 USD $4.485254
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material STAINLESS STEEL
Actuator Material BRASS
Center Contact Material COPPER
Terminal Material COPPER
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series EB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Vertical
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 10.9982mm
Body Breadth 7.0104 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Gray
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact Function ON-(ON)
Actuator Travel 1.6002 mm
Bushing Length 0.268 inch
Life (Cycles) 100000 cycles
Bushing Diameter 0.236 inch
Actuator Finish CHROME
Dimensions
Body Height 35.4076mm
Length - Termination 0.157 inch
Actuator Length 0.315 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
