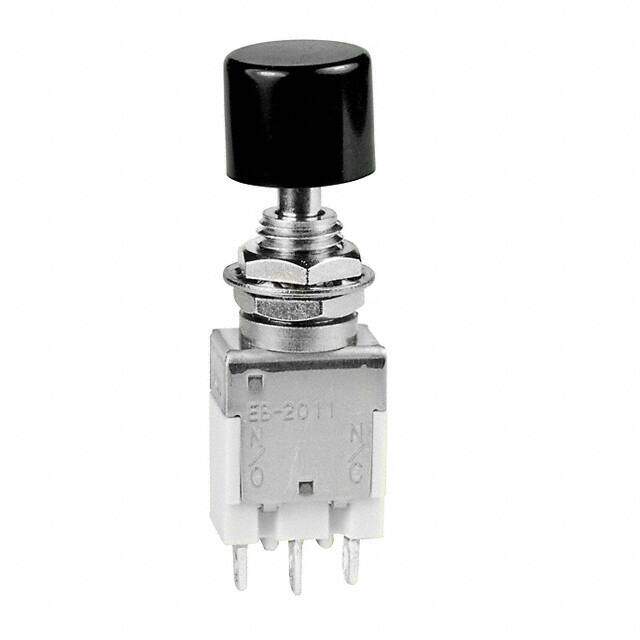

EB2011-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $5.98
Unit Price: USD $5.9752
≥1 USD $5.9752
≥10 USD $5.3768
≥100 USD $5.106816
≥500 USD $4.890512
≥1000 USD $4.728416
≥3000 USD $4.485254
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0.315 inch
Length - Termination 0.157 inch
Body Height 15.2146mm
Technical
Actuator Finish CHROME
Bushing Diameter 0.236 inch
Bushing Length 0.268 inch
Actuator Travel 1.6002 mm
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Contact Current Rating 3A
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.0104 mm
Body Length or Diameter 10.9982mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Orientation Vertical
Current Rating (Amps) 3A AC
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series EB
Published 2012
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Terminal Material COPPER
Center Contact Material COPPER
Actuator Material BRASS
Housing Material STAINLESS STEEL
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 5 Weeks
