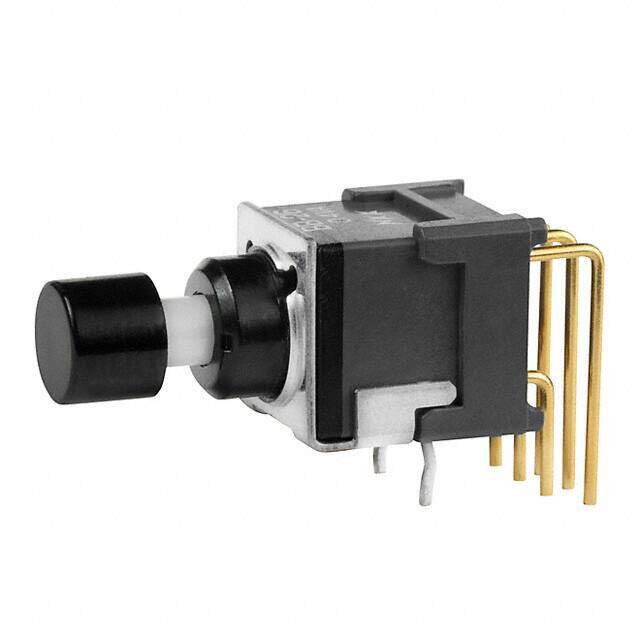

BB26AH-FA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7144
≥1 USD $6.7144
≥10 USD $6.03152
≥100 USD $5.753088
≥500 USD $5.5055
≥1000 USD $5.28902
≥3000 USD $5.010685
Inventory: 212
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 23.0124mm
Length 8.8mm
Technical
Bushing Diameter 0.236 inch
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
PCB Hole Count 8
Contact Current Rating 100mA
Mechanical Life 25,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Black
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-On
Circuit DPDT
Actuator Type Round, Button
Body Breadth 8.7884 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 23.3mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.65
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Antistatic
JESD-609 Code e4
Series BB
Published 2012
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Terminal Material BRASS
Actuator Material Polyacetal
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 10 Weeks
