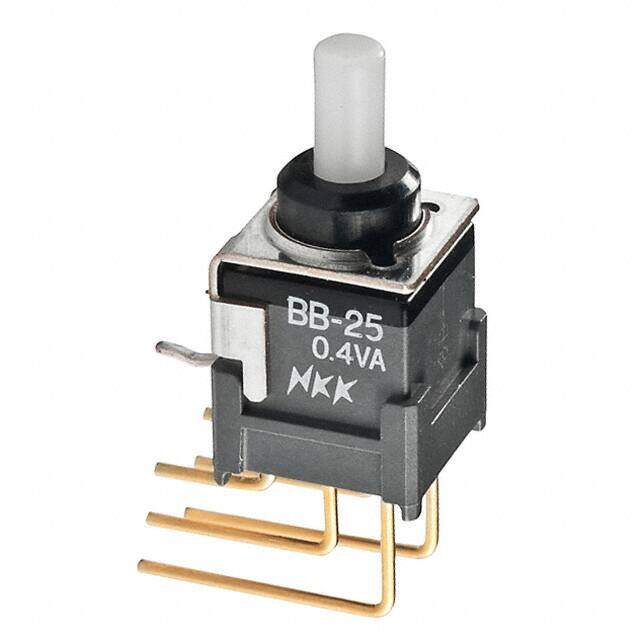

BB25AV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
DPDT PCB ON-(ON) Push Button Switch, 0.4 VA@ 28 V ac/dc
PDF
/
Buying Options
Total Price: USD $5.93
Unit Price: USD $5.9312
≥1 USD $5.9312
≥10 USD $5.3416
≥100 USD $5.073024
≥500 USD $4.85826
≥1000 USD $4.697334
≥3000 USD $4.455748
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.213 inch
Length - Termination 0.161 inch
Body Height 24.6634mm
Technical
Bushing Diameter 0.236 inch
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Length 0.106 inch
Actuator Travel 1.0922 mm
Contact Function ON-(ON)
PCB Hole Count 8
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Color - Actuator/Cap White
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 6.8072 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Antistatic
JESD-609 Code e4
Series BB
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Plating GOLD OVER NICKEL
Terminal Material BRASS
Center Contact Plating GOLD OVER SILVER
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole, Right Angle, Vertical
Mount PCB, Through Hole, Vertical
Contact Material Bronze, Gold
Supply Chain
Factory Lead Time 10 Weeks
