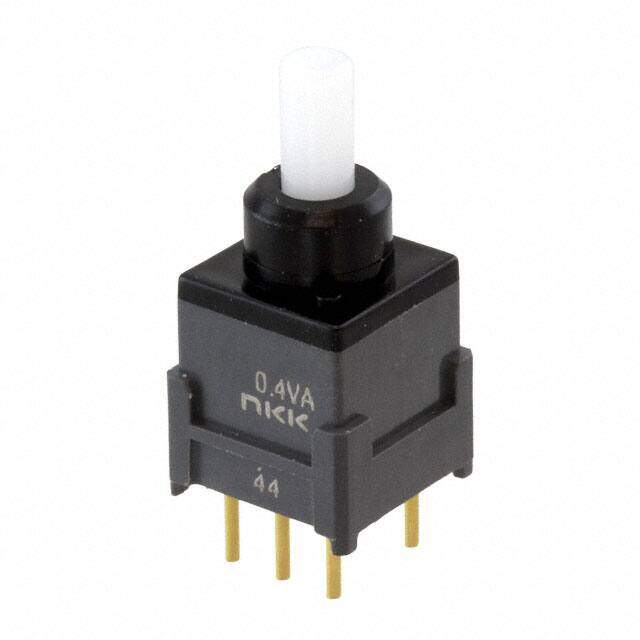

BB25AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches DPDT ON-(ON) STRAIGHT PC .4VA
PDF
/
Buying Options
Total Price: USD $5.09
Unit Price: USD $5.0864
≥1 USD $5.0864
≥10 USD $4.58656
≥100 USD $4.357056
≥500 USD $4.1734
≥1000 USD $4.0359
≥3000 USD $3.829496
Inventory: 72
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.213 inch
Length - Termination 0.122 inch
Body Height 21.6154mm
Technical
Washability SOLVENT
Bushing Length 0.138 inch
Actuator Travel 1.0922 mm
Contact Function ON-(ON)
PCB Hole Count 6
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Color - Actuator/Cap White
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Antistatic
JESD-609 Code e4
Series BB
Published 2015
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Terminal Material BRASS
Housing Material Polyamide
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Bronze, Gold
Supply Chain
Factory Lead Time 5 Weeks
