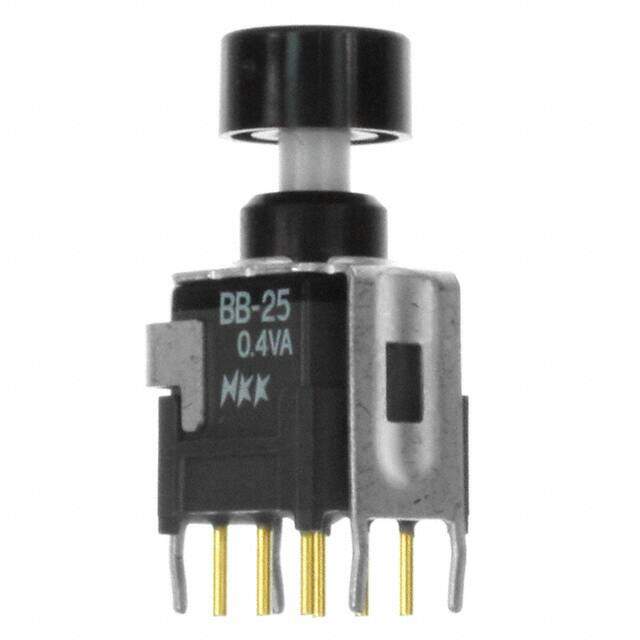

BB25AB-HA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $6.01
Unit Price: USD $6.0104
≥1 USD $6.0104
≥10 USD $5.412
≥100 USD $5.140256
≥500 USD $4.92272
≥1000 USD $4.759568
≥3000 USD $4.514752
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.248 inch
Length - Termination 0.122 inch
Body Height 22.5044mm
Technical
Bushing Diameter 0.236 inch
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Length 0.106 inch
Contact Function ON-(ON)
PCB Hole Count 10
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Black
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 8.8mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Antistatic
JESD-609 Code e4
Series BB
Published 2010
Packaging Box
Operating Temperature -30°C~85°C
Physical
Terminal Material BRASS
Actuator Material Polyacetal
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 10 Weeks
