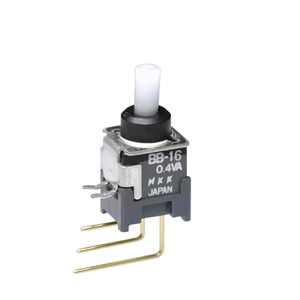

BB16AV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
WASHABLE SUBMINIATURE ANTISTATIC PUSHBUTTONS
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.856441
≥1 USD $1.856441
Inventory: 3543
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Gold
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material Polyamide
Actuator Material POLYACETAL
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material BRASS
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series BB
JESD-609 Code e4
Feature Antistatic
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 8.7884mm
Body Breadth 6.8072 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Dielectric Withstanding Voltage 500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 25,000 Cycles
PCB Hole Count 5
Actuator Travel 2.0066 mm
Bushing Length 0.106 inch
Life (Cycles) 50000 cycles
Washability SOLVENT
Dimensions
Body Height 24.6634mm
Length - Termination 0.161 inch
Actuator Length 0.213 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
