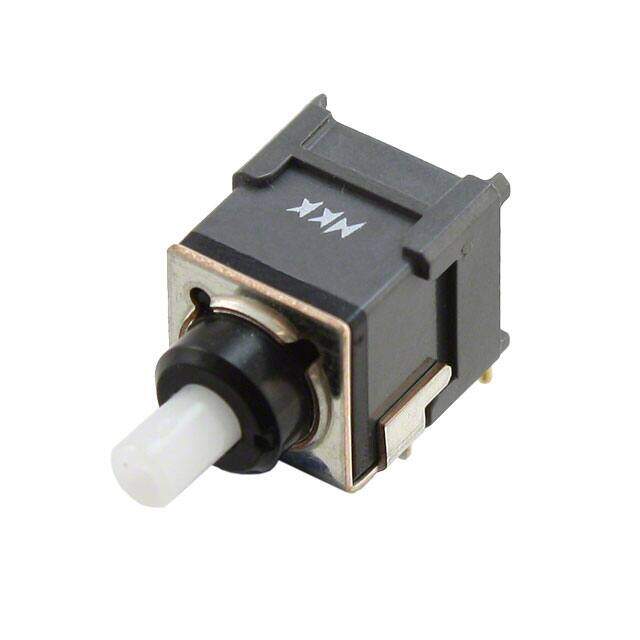

BB16AH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.02
Unit Price: USD $5.016
≥1 USD $5.016
≥10 USD $4.51528
≥100 USD $4.289472
≥500 USD $4.10872
≥1000 USD $3.973314
≥3000 USD $3.770114
Inventory: 1167
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0.213 inch
Length - Termination 0.122 inch
Body Height 19.5834mm
Technical
Washability SOLVENT
Bushing Length 0.106 inch
Actuator Travel 2.0066 mm
PCB Hole Count 5
Contact Current Rating 100mA
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Color - Actuator/Cap White
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Antistatic
JESD-609 Code e4
Series BB
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Terminal Material BRASS
Housing Material Polyamide
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 5 Weeks
