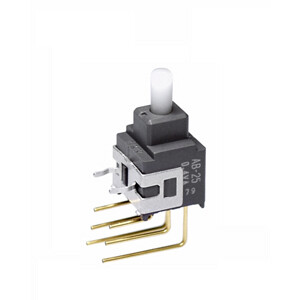

AB25AV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
DPDT PCB ON-(ON) Push Button Switch, 0.4 VA@ 28 V ac/dc
PDF
/
Buying Options
Total Price: USD $6.67
Unit Price: USD $6.6704
≥1 USD $6.6704
≥10 USD $5.99632
≥100 USD $5.72
≥500 USD $5.47404
≥1000 USD $5.25866
≥3000 USD $4.981909
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mounting Type Through Hole, Right Angle, Vertical
Surface Mount NO
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Housing Material GLASS FILLED POLYAMIDE
Actuator Material POLYACETAL
Center Contact Plating GOLD
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material BRASS
End Contact Plating GOLD
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2010
Series AB
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 9.4996mm
Body Breadth 10.2108 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Timing BREAK-BEFORE-MAKE
Contact Function ON-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.138 inch
Dimensions
Body Height 15.4686mm
Length - Termination 0.122 inch
Actuator Length 0.213 inch
Compliance
RoHS Status ROHS3 Compliant
